  1. Patient Position
  2. Isocenter
  3. Treatment Parameters
  4. Prescription
  5. Modality
  1. Auxiliary Set-Up Devices
  2. Machine Operation
  3. Beam Modifiers
  1. Patient Monitoring Systems
  2. Record and verify Systems
  3. Portal Imaging
  4. Site Verification
  5. Dose Verification
  6. Equipment Malfunctions
  • Documentation
  1. Information in Treatment Record
  2. Elements of record Keeping
  3. Charge Capture Terminology

Verification > Patient Position

Verification > Isocenter

Verification >Treatment Parameters

Verification > Prescription

Verification > Modality

Treatment Machine Set-Up > Auxiliary Set-Up Devices

Treatment Machine Set-Up > Machine Operation

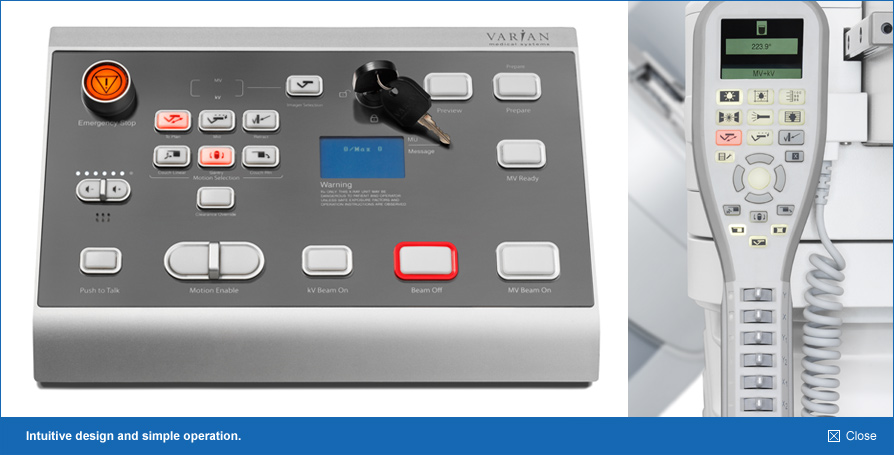

  • Console controls

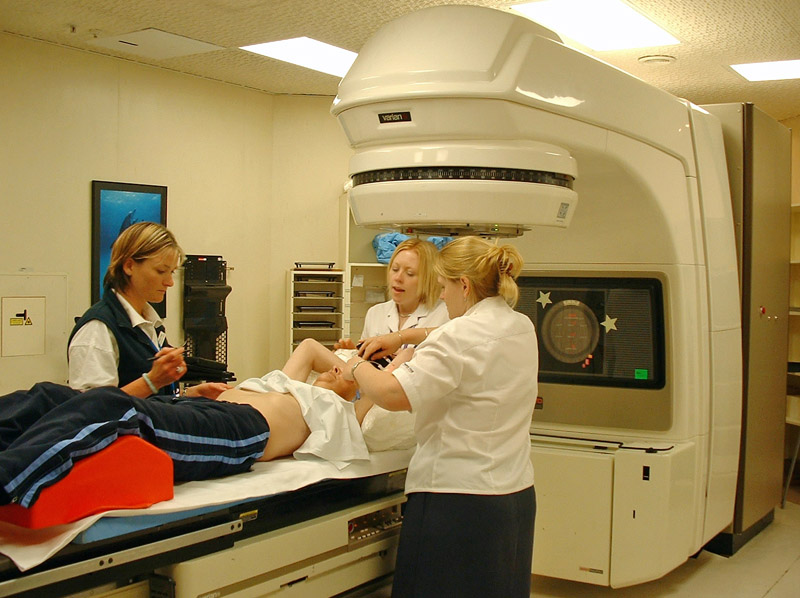

Machine operation is the significant role in all the fields.  In radiotherapy also it’s important because here small mistakes make big impact in the treatment.  However, a few errors are always there in machine operation like setup, digital indication errors etc.  In order to rule out those errors advance technology machines are introduced and some are in research process.

Machine operation Radiotherapy:

Machine operation in radiotherapy is different for different machines.

Operations in Teletherapy,

  1. Patient positing is one of the major were the errors occur. These errors indirectly related to the machine operation. If, radiation therapist doesn’t operate the machine of set the patient in exact position means errors will come, inevitably leads incorrect treatment.
  2. In teletherapy machines such as Cobalt-60 based or Linear Accelerators are fully computerized to avoid the manual errors during the operation of the machine.
  3. In fully computerized setup, the fully trained person or experienced person only will allow to work to avoid the treatment errors.
  4. Possible errors while operating the machines in teletherapy.
  • Wrongly entering the treatment time or monitor unit for the treatment.
  • Neglecting the warning signs displayed by the system will also lead to expectable errors.
  • Routine monitoring the patient through CCTV is also very crucial one.

5. When we are setting the machine parameters (collimator angle, gantry angle, couch lateral    movements) misplacing of these values lead to drastic errors in the treatment.

Possible errors in Brachytherapy:

  1. When compared to teletherapy, brachytherapy is less prone to an error that is also important to mind it.
  2. When inserting the catheters from the machine to patient, there is a chance placing in a wrong channel.
  3. In computerized brachytherapy system radiation therapist may be do one error. Suppose if two patients name is similar he/she should conform first verbally to the patient. If, he/she fails to does that lead to severe impact on the patient.

Overall the machine performance and its operation are in the hand of radiation therapist, because they are routinely working in that machine they are know very well others about the complications and errors in setups. So they should care those in mind to eradicate the incorrect treatment in radiotherapy

Questions:

1. What are the people required for successful run of the machine?

  1. Radiation Therapist
  2. Medical Physicist
  3. Dosimetrist
  4. All is correct

Answer:

  1. All is correct

References:

  1. www.Dragon-tongue.com
  2. www.Variantruebeam.com
  • Console controls

Treatment Machine Set-Up > Beam  Modifiers

Treatment Administration > Patient Monitoring Systems

  • Patient Monitoring Systems
  • Direct visual
  • Indirect Visual
  • Two-way voice communication system
  • Emergency situations

Patient Monitoring Systems (PMS) has been widely used in all radiotherapy centres. PMS brought to strict in regulations after faced a lot of discrepancies in the treatment.  Different types of patient monitoring systems are in use.

They are listed below

  1. Direct visual system
  2. Indirect visual system
  3. Two-way voice communication system

The above mentioned systems are widely till in use for monitoring the patients during the time of treatment. Because of the movements and other issues during the treatment impose a bad impact on the patient.

Direct visual System:

Direct visual is a one way of patient monitoring system. This system has been used in the olden days, at the time there is no advanced communication and other way of patient monitoring system. The direct visual system is useful in monitoring the patient during the radiation treatment.

Indirect visual system:

Indirect visual monitoring system is a type of patient monitoring system widely using till now in the radiotherapy.   Time at which the radiation was started as treatment for cancer direct visual communication used widely (Lead window type).  Later on the emergent of indirect visual patient monitoring systems slowly removed the usage of direct visual system by its unique advantage.

Two-way communication system:

Two-way voice communication system is that during the treatment it helps to communicate between the patient and Radiation Therapist. With the help of two way voice communication patient and Radiation therapist or Radiation therapist and patient can communicate at instant of treatment period.

  • Patient Monitoring Systems
  • Direct visual
  • Indirect Visual
  • Two-way voice communication system
  • Emergency situations

Treatment Administration > Record and verify Systems

Treatment Administration > Portal Imaging

Portal imaging is the acquisition of images to conform the treatment field setup before the execution of the concern treatment. Portal imaging will be acquired with the help mega voltage beam. But, now a day this trend has been modified by setting the x – ray tube in the gantry or changing the energy of linear accelerator to ordinary KV imaging energy.  In all the latest linear accelerator are coming with Electronic Portal Imaging Device (EPID). In addition to that, on-board imager (OBI) is attached with the machine to verify the treatment field. But still EPID is in practice in all the linear accelerators.

Using portal imaging we can verify the treatment field is correct or not.  But, it is not possible to get the good quality image to see the treatment field clearly. Because in diagnostic imaging photoelectric effect is predominant but, in therapy Compton Effect is more predominant than other effects. In Compton Effect the scattering of the photon beam would be there because of its high energy. Not only that but also Compton Effect doesn’t depend on atomic number of the material.

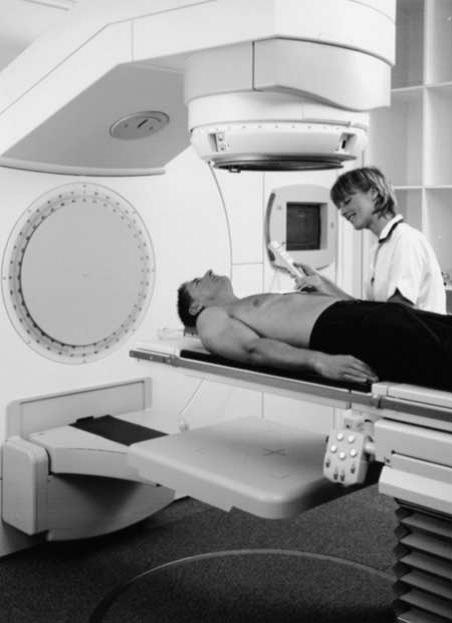

Above figure shows the EPID of Elekta machine.

Different types of portal imaging are,

1. Camera based Portal Imaging

2. Film based  Portal Imaging

Camera based Portal Imaging:

     In camera based portal imaging X-ray to light converter, mirror and camera would be used for portal imaging. The photon beam is allowed to fall on metal plate attached with phosphor and then fall on the slanted glass mirror, after that it will be catch by using the video camera.

Film based Portal Imaging:

     Film based portal imaging is traditional medium of portal imaging. In Film based portal imaging the ready pack films or autoradiograph quality films are used for verification.

Advantages of Portal Imaging:

1. Treatment field verification during the treatment gives the quality treatment.

2. Images will be available immediately for reference.

3. While x-ray imaging patient have to be shift from treatment room to x-ray room it leads to unnecessary error in the setup.

Disadvantages of Portal Imaging:

1. Bulky attachment is one of the major disadvantages.

2. Poor image quality.

3. Not cost effective.

Questions:

1. Why image quality in portal imaging are very poor?

  1. Compton is predominant in therapy
  2. Because of high energy
  3. Photoelectric effect is dominant
  4. A and B is correct
  5. A and C is correct
  6. All

Answer:

  1.  A and B is correct

References:

  1. The Physics of Radiation Therapy 4th Edition by Faiz. M. Khan
  2. www.pubmed.com
  3. www.BJR.com
  4. Portal imaging, K A LANGMACK, DPhil, Medical Physics Department, Lincoln County Hospital, Greetwell Road, Lincoln, UK

Treatment Administration > Site Verification

Treatment Administration > Dose Verification

Dose verification system (DVS) is an important one to consider it.  Due to the emergent of advanced technologies in radiotherapy machines and others more number of patients is getting radiation treatment.  However, we don’t is it really they are getting the exact dose which is prescribed.  Dose is the prime factor in determining the curative part of the treatment.  It may lead to under and over dosage both cause the recurrence of cancer again.  In radiotherapy only the successful rate of the treatment is considered only if, they survive more than five years.

For this purpose people introduced DVS to monitor the patient.  The DVS can be done different methods by using different equipment. Only thing is that it shouldn’t alter the treatment outcome of the concerned persons.

The following systems is routinely using for DVS,

  1. Using Diodes, Dose Verification System.
  2. Film based, Dose Verification System.
  3. EPID based, Dose Verification System.

DVS using Diodes (MOSFET):

 Dose Verification System consists of implantable MOSFET dosimeter for measuring radiation dosage at particular depths, an insertion tool to implant this dosimeter and reader system to receiving these doses. The reader has the ability to record the daily as well as the cumulative dosage. In DVS two Metallic oxide semiconductor field effect transistor (MOSFET) of measuring 2mm to 18mm which are permanently implanted into the patient body.  The MOSFET will act as a radiation sensing part.  Radiation doses can be monitored through wireless technology outside from the handheld controller. By using the software dose can be reviewed after the treatment. This device can also be used as reference marker in imaging.

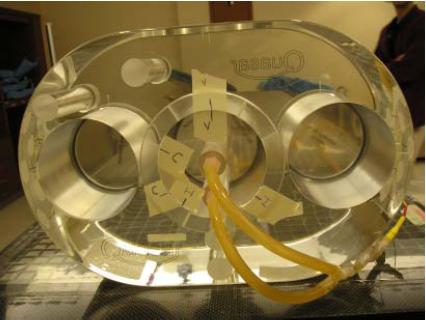

Above figure shows the MOSFET dosimeter Setup

Film based DVS:

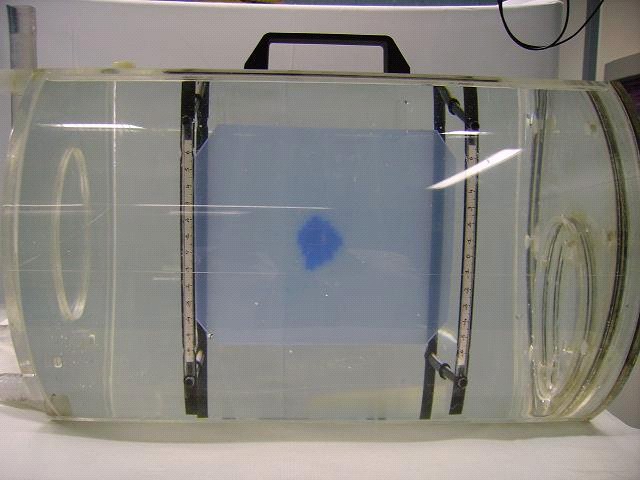

 The film based Dose Verification System has been used till from the beginning of the DVS. Simply placing the radiographic film below the treatment site and expose with mega voltage beam of lesser to verify it.  From the film the intensity can be read and dosage levels to be known by measuring with the help characteristic curve and densitometer.

EPID based DVS:

After the introduction machines with EPID it becomes very easy to verify the patient treatment site and sometimes dosage by special methods. The EPID based 3D dose verification has to be done before the actual treatment of the patient. Detail work of 3D dose verification done by Wouter van Elmpt etal.

Questions:

1. Dose Verification System  increasing the,

  1. Accuracy of the treatment
  2. Quality of the treatment
  3. Survival indirectly by delivering the prescribed dose
  4. All

Answer:

  1. All

References:

  1. Dose Verification System—Radiation Detector for Radiation Therapy, a report by,Tina Marie Briere, PhD
  2. PhD thesis: “3D dose verification for advanced radiotherapy”, Wouter van Elmpt, PhD – Department of Radiation Oncology (MAASTRO), GROW – School for Oncology and Developmental Biology, Maastricht University Medical Centre, Maastricht, The Netherlands.
  3. National Horizon Scanning Centre, National Institute of Health Research, university of Birmingham
  4. The Dose Verification System (DVS) for cancer patients receiving radiation therapy, Scarantino CWBeyer GP, Department of Radiation Oncology, Rex Cancer Center, 4420 Lake Boone Trail, Raleigh, NC 27607, USA.
  5. www.ncbi.nlm.nih.gov/pubmed
  6. www.waset.org
  7. The Physics of Radiation Therapy 4th edition by Faiz. M. Khan.
  8. www.medphys.org
  9. Journal of applied clinical medical physics.
  10. http://www.maestro-research.org/pageprincipale1.htm

Treatment Administration > Equipment Malfunctions

  • Types

Documentation> Information in Treatment Record

  • Tumor dose
  • Energy and type of radiation
  • Fraction
  • Set-up instructions

Documentation > Elements of record Keeping

  • Patient Identification

Documentation > Charge Capture Terminology
